Zoo siab, Zoo tshaj tus nqi, DAF UNISERVAL JOINT 609057

Lus piav qhia luv luv:

DAF UNISERVAL JOINT 609057

MOQ: 100, 100-1000, 1000 + NTAU NTAU NTAU

FOB Nqe:US $0.5 - 9,999 / Daim

Min. Order Quantity:100 Daim / Daim

Muaj peev xwm muab khoom:10000 Daim / Daim ib hlis

Xa email rau peb

Product Detail

Khoom cim npe

Khoom Parameter

Paub meej:
Khoom siv:	20Cr/20CrMnTi	Qauv nab npawb:	609057 ib
Qhov Chaw Keeb Kwm:	Zhejiang Tuam Tshoj	Hom Lub Npe:	KRML
Khoom npe:	DAF UA Joint	Qhov ntau thiab tsawg:	42 X 104.5 hli
Kev ua lag luam:	Tom qab Kev Lag Luam / OEM	Circlip Thickness:	2 MM
Qhov hnyav:	1 456g	Packing Paub meej:	Inner packing + Outer Packing + Ntoo thawv
Product Description:
Hla Ncej: 20Cr / 20CrMnTi		Bearing khob: 20Cr/20CrMnTi
Nto Hardness: HRC58-64		Nto Hardness: HRC58-64
Core Hardness: HRC33-48		Cementite qhov tob: 0.3-0.7mm
Cementite Qhov tob: 0.8-1.3mm		Koob: GCr15 Surface Hardness: 58-64HRC
Plua plav npog: NBR		Kev kam rau siab: D: 0-0.015mm L: 0-0.20mm
Roj Roj: No.2 tsheb roj roj		Lub voj voog: 65Mn Hardness: 48-53HRC

DAF U Joints

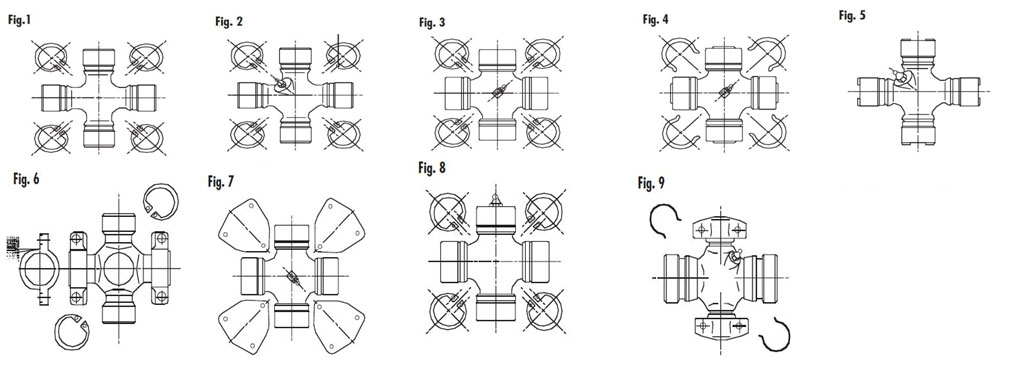

FIG	GKN NO	D mm	Aw mm	L mm	SERIES	DAF	ORIGINAL NO
1	SIB 222	35		96.8 ua		542635 ib
1	TIAB SA 236	38		105.8 ib		3 14151	314851 ib
1	SIB 176	39.675 ib		115.42 Nws	1510	3 16340
1	6 09057	42		104.5 ib	587.15 ib	609057 ib
1	TIAB SA 256	44		124.8 ib		3 02155	140264 ib
1	TIAB SA 266	47		130.9 Nws		586969 ib	106829 ib
1	TIAB SA 271	48		116.5 ib	587.2 ib	507539 ib	6.9866 ib
1	TIAB SA 278	50		131		178185 ib
3	TIAB SA 381	50		152.6 ib	287.4 ib	311267 ib	605804 ib
1	TIAB SA 286	55		164		5869 2
1	SIB 179	30.18 Nws		106.3	1410	608921 ib
1	TIAB SA 282	52		133	587.3 ib	264354 ib
1	TIAB SA 288	57		144	587.35 ib	5 05698	75873606 ib

Hloov	Ref.Tsis muaj.	Cov khoom		Cov ntaub ntawv
DAF	609057 ib	Hom sib koom		Universal Joint
DAF	1258761 ib	Ntev [mm]	L	106
DAF	609057 ib	Sab nraud txoj kab uas hla [mm]	D	42
txiv neej	81.39100.6050
txiv neej	81.39126.6009
txiv neej	85.30002.0404 ib
Mercedes-Benz	000 410 4031
Mercedes-Benz	617 410 0031
ZG	ZG.30661-0008

Tsheb hom	Qauv, Cav, Gearbox, qag, Cabin
DAF	F 2800/2900/3200, F 3300/3600, N 2800, Bus
MAN Bus / Neoplan	SR
MAN F/M/L 2000, F/M/G 90, F 7/8/9	G 90
Mercedes-Benz L-Series	318/352/360, 380/381/383/385, 616/617/651/652, 670/673/674/675, 676/677/678
Mercedes-Benz O 300-/O 400-Series / Setra S 200- / S 300-Series	SIB 357/684

Kev Tsim Kho Tshuab

Kev ruaj khov zoo, tus nqi zoo, cov khoom lag luam ntev, khoom xa tuaj raws sijhawm.

Kev siv thev naus laus zis: Cov khoom seem yog ua tiav los ntawm cov txheej txheem forging, cov khoom ua tiav los ntawm CNC tshuab dhos, sib dhos kab sib dhos, ntim khoom zoo yog ruaj khov.

Cov pab pawg neeg siv khoom: Tebchaws Asmeskas, Nigeria, Ghana, Mexico, Mozambique, Zambia, Iran, Nyab Laj, Cambodia, Dubai, Panama, Indonesia ....
